Smart Inverter System
This project controls and monitors various parameters of power inverter, battery energy storage system, and ultra capacitor. The control system ties all components together using Modbus based communication network
Description:
Location: San Diego, CA USA
Project Scope: Build a control system to monitor and control battery energy storage system, ultracapacitor racks, and power inverter.
Convert the entire system into a smart inverter system with build in safety and control logic.
System Components:

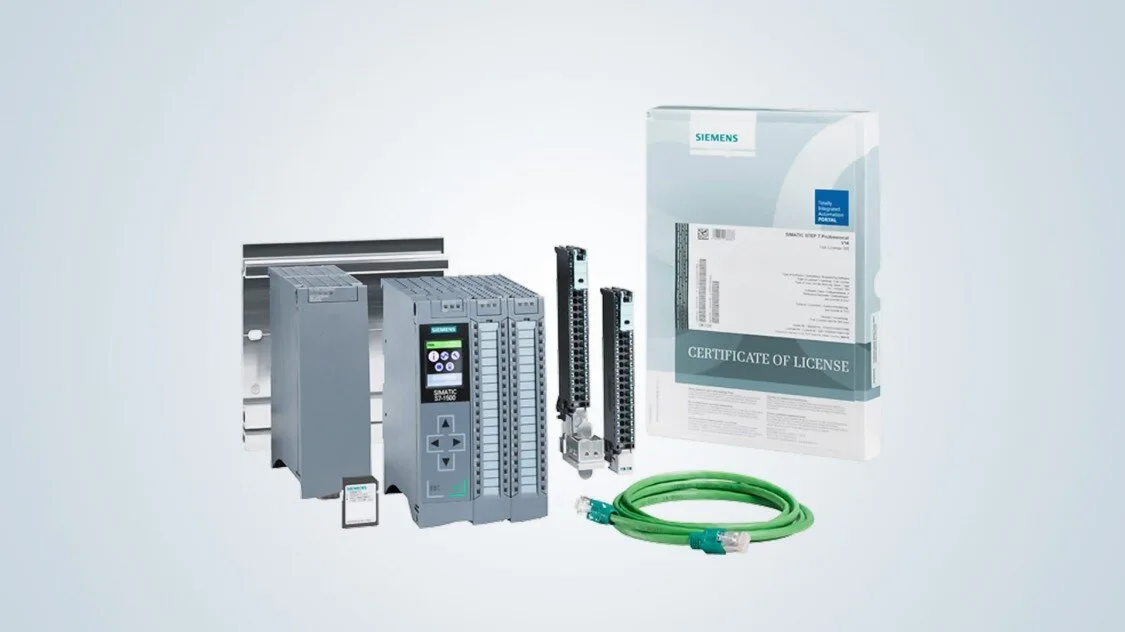

Siemens S7 1500 PLC
PCs.

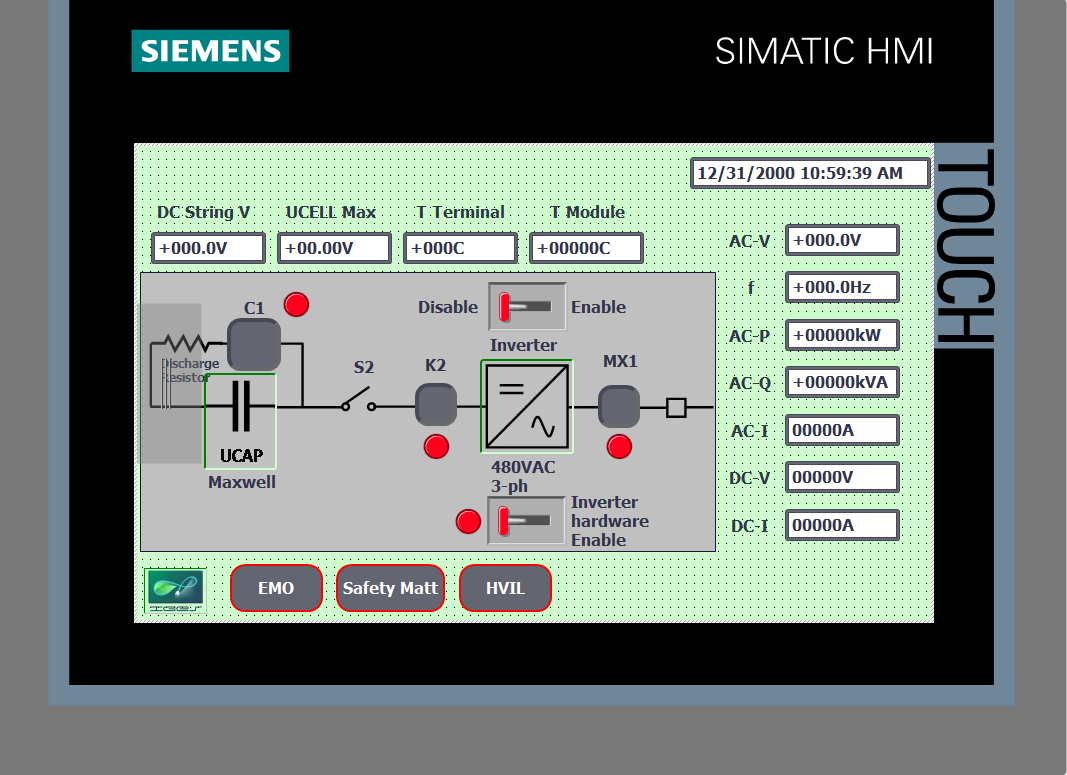

HMI screen.
Control Rack.
Controlled recloser
Power meters.
Grid power simulator.
RTDS
